Electromagnetic Noise Countermeasure Products
With our proprietary products, we help resolve electromagnetic noise issues in the evolving field of electronic devices.
We have developed electromagnetic noise countermeasure products by applying electromagnetic wave control technology cultivated through our anechoic chamber business. We offer “noise suppression cores” for conducted noise and “electromagnetic noise countermeasure sheets” for radiated noise. Each product is designed with the trend toward miniaturization and higher frequencies in electronic devices. We support the solution of electromagnetic noise issues across diverse fields, including automobiles advancing toward electrification, digitization, and autonomous driving, as well as increasingly sophisticated information and communication devices.
Noise suppression cores

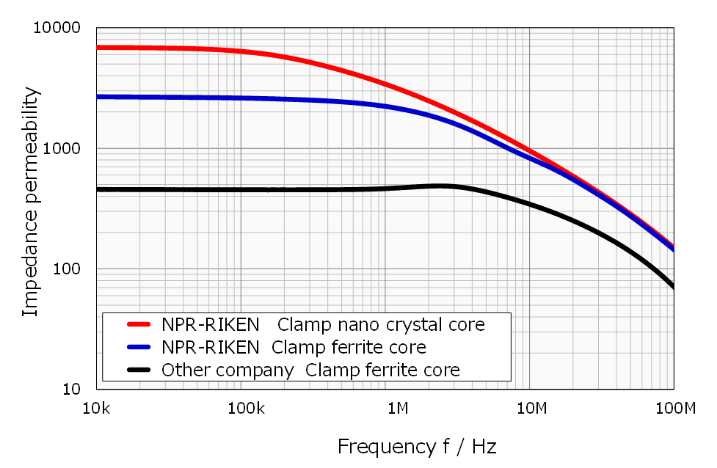

We offer clamp nano crystal cores using high-permeability nano-crystalline alloy and clamp ferrite cores using special ferrite material. Notably, this marks the first time in the world that a nano-crystalline alloy has been used for a clamp core. All products offer performance equivalent to or exceeding that of other manufacturers' clamp ferrite cores while achieving a smaller size, which should alleviate concerns about securing installation space for noise countermeasure cores. In addition, the specifications are designed to withstand the operating environments of automotive components, which require high heat resistance.
permeability and enable core miniaturization.
Clamp nano crystal cores
Clamp ferrite cores

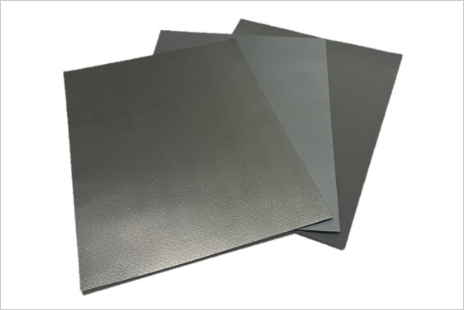

Electromagnetic noise countermeasure sheets

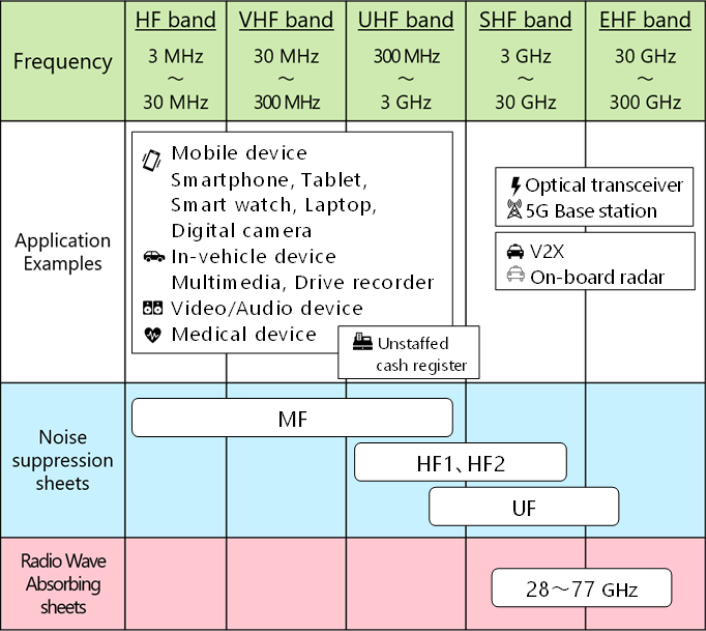

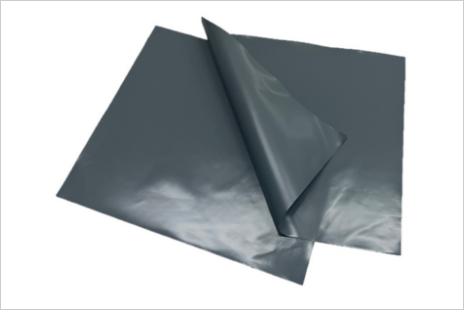

We offer electromagnetic noise countermeasure sheets tailored to specific electromagnetic environments. We have developed noise suppression sheets effective in the MHz to GHz band for near-field, as well as radio wave absorbing sheets effective in the sub-millimeter wave to millimeter wave band (20 to 90 GHz) for far-field. Additionally, we have developed thermal conductive sheets incorporating noise suppression functionality to address the growing demand for thermal countermeasure solutions in recent years. Through original material design, the base material is optimized to be high noise suppression performance while meeting the requirements of reliability for the on-vehicle environment. Our products are used not only in automotive equipment but also in a wide range of consumer appliances.

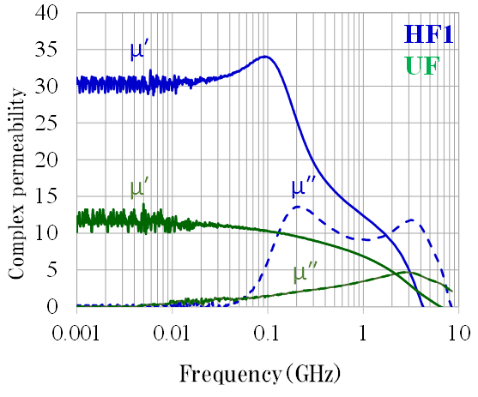

(for near-filed)

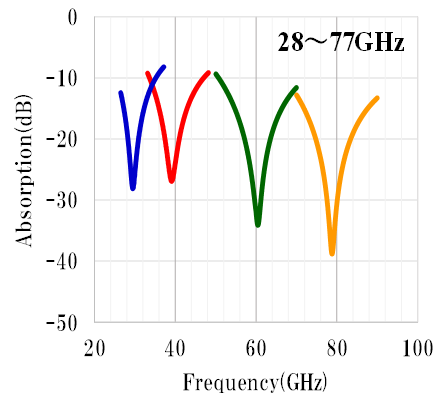

(for far-field)
Test condition :
-40℃×0.5h ⇔ 125℃×0.5h (2,000 cycles)
Our products are highly durable and have no performance degradation or substrate deterioration even after prolonged exposure to high or low temperatures.
Brochure DL
